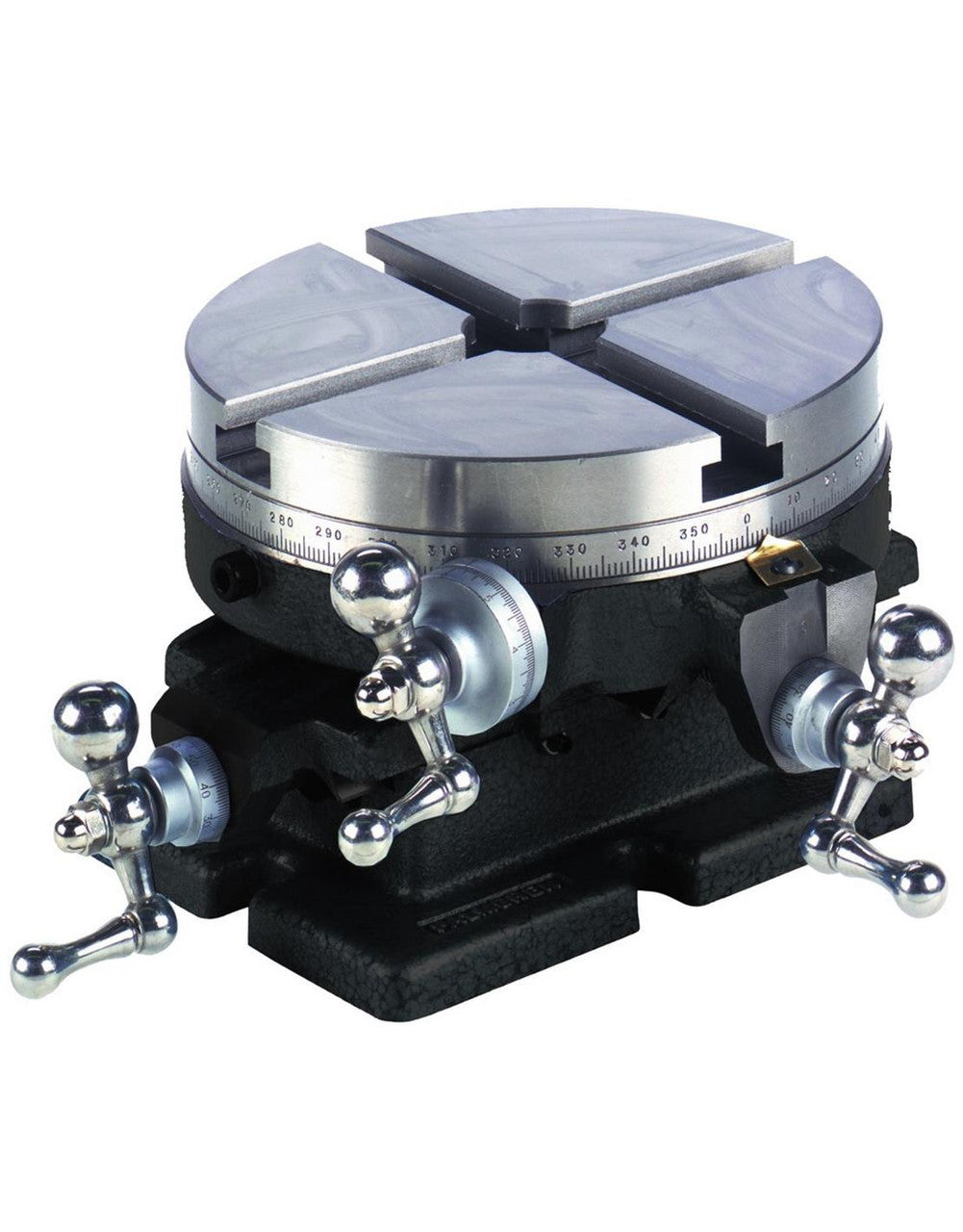

Palmgren 8" Rotary Cross Slide Table

Palmgren’s rotary cross slide tables have precise rotary, lateral and transverse feeds for rapid positioning of the workpiece. Bolted to a machine these tables increase your ability to mill, route, shape, cut slots and keyways, as well as grind. Intricate jobs become easy on metal, plastic, composites or wood.

• Accurately position work on the “X” and “Y” axis, as well as 360° table rotation
• Precision ground table top to 0.001" total indicator reading
• A 5/8" keyway and mounting lugs are provided for locating and accurate, secure mounting
• Smooth worm gear drive provides positive rotary feed
• Balanced ball crank feed handles do not exceed below the base to eliminate interference with the machine table
• 4" cross slide travel
• Cross slide dials are calibrated in 0.001" increments
• Rotary dials are graduated in 3 minute increments and 1 minute increment on the vernier
