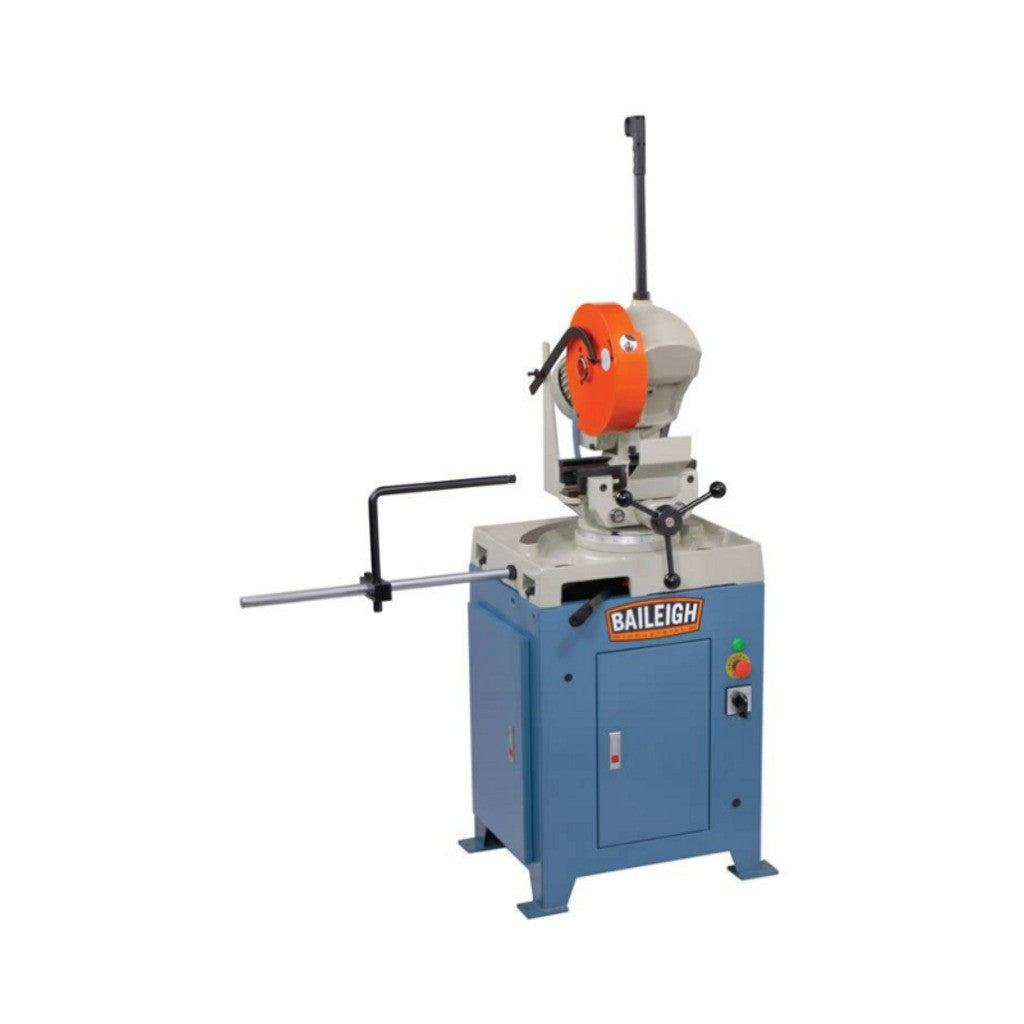

Baileigh Manually Operated Cold Saw - CS-275M

Accepts an 11” blade with a 2.75” round tube capacity at 90°

Miters 45° right and 90° left, perfect for slotting applications

3 hp motor requires 220 volt 3-phase power

Choose from 2 speeds depending on your material: between 60 rpm (mild steel) and 120 rpm (aluminum)

Direct-drive head features all-metal gears, ground and hardened to last for many years

Backlash adjustment ensures tight tolerances throughout the life of the saw

Self-centering American-style vise keeps the material correctly aligned with the blade for perfect cuts

Sturdy stop rod can move left or right to set up repeatable lengths for production runs

Heavy folded steel base—larger and wider than our CS-275EU—stabilizes the machine for accurate, wobble-free cutting

Flood coolant system helps the blade make burr-free cuts, takes strain off the operator, and enables the blades and saw to last longer



STOCK NUMBER BA9-1002444
MODEL NUMBER CS-275M
MOTOR (HP) 3.0 / 1.5 hp
PROP 65 Cancer and Reproductive Harm
SOLID ROUND AT 45 DEGREES (IN.) 1.5"
SOLID ROUND AT 90 DEGREES (IN.) 1.5"
STYLE (TYPE) Dual Action, Self Centering
TUBING RECTANGLE AT 45 DEGREES (IN.) 2.165" x 2.25"
TUBING RECTANGLE AT 90 DEGREES (IN.) 2.75" x 2.9"
TUBING ROUND AT 45 DEGREES (IN.) 2.25"
TUBING SQUARE AT 45 DEGREES (IN.) 2.165" x 2.165"
TUBING SQUARE AT 90 DEGREES (IN.) 2.75"
WEIGHT (LBS.) 635
