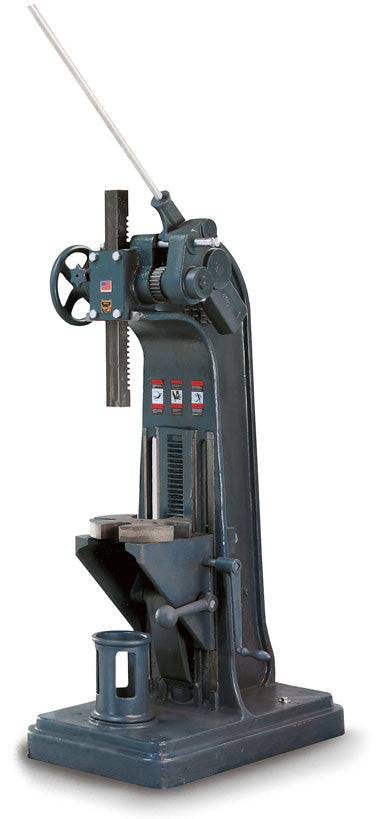

Dake 12-ton Compound Leverage Press (Floor Type)
$11,150.00
Sale price
$11,150.00
Regular price
Skip to product information
Dake 12-ton Compound Leverage Press (Floor Type)
$11,150.00
Sale price
$11,150.00
Regular price
Drop Ship Cost: $399
This 12 ton compound leverage arbor press is designed for floor use. It features a cast iron frame that is machined for maximum stability and incorporates a reinforced spine design which adds rigidity to the press body. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate are flat and parallel to provide accurate support.
Feature:
Compound leverage mechanism allows greater pressure application with minimum effort.
Rack and pinion table adjustment
Sliding pin easily converts press from compound to single leverage.
Standard:
Cast Iron Frame
Hand-wheel
Ram
Rack and Pinion Table
Notched Table Plate
Counterweight
Specs:
MODEL NUMBER4
Part Number903007
Capacity12 tons
Leverage ratio112:01:00
Ram size2” x 2” x 24”
Maximum diameter work20”
Throat10”
Largest arbor5-¼”
Maximum ram to table26”
Minimum ram to table24-½”
Capacity over tablen/a
Capacity over table platen/a
Base length37”
Base width21-½”
Height62”
Weight1,350 lbs
