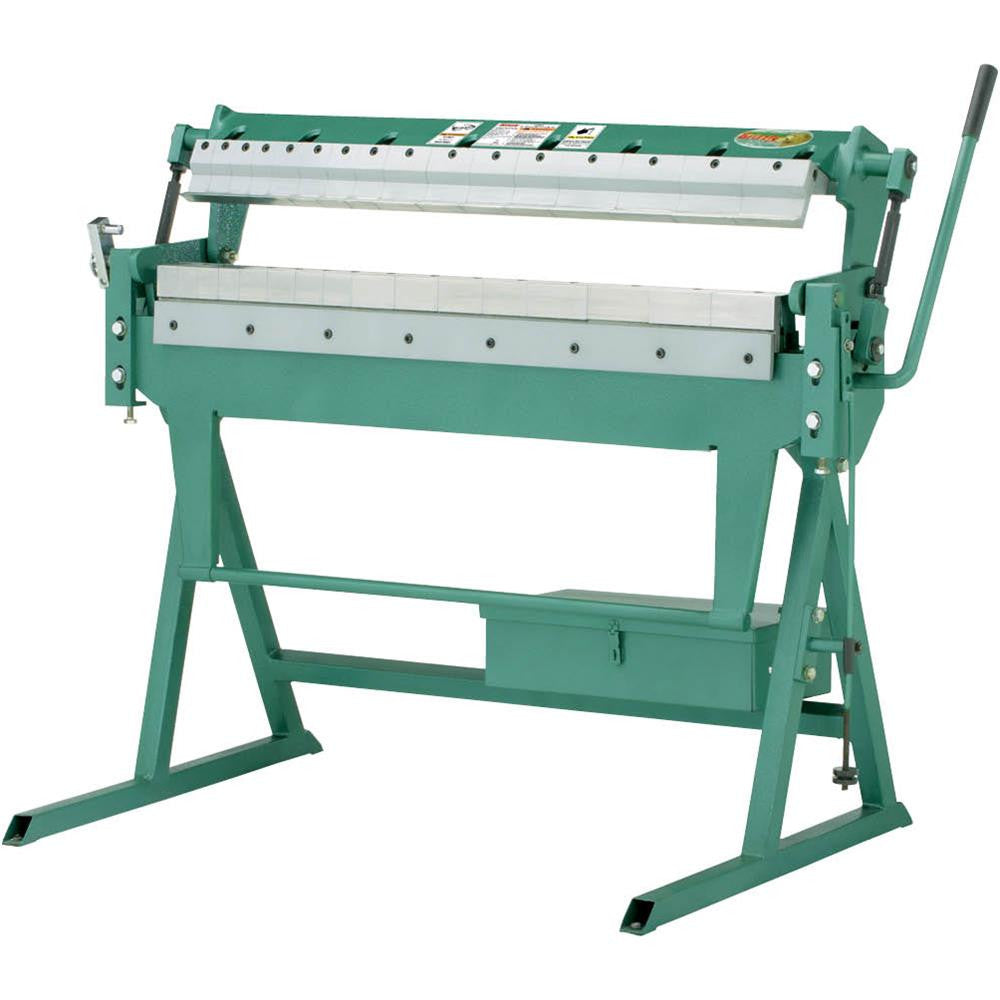

Grizzly G0481 - 42" Swivel Bending Brake

This 42" Swivel Bending Brake opens wide for complex bends and deeper pans and boxes. Eleven different finger widths can be arranged for a variety of pan and box widths. Includes on-board toolbox, angle gauge, swing-away stop gauge, and full-width hand bar. Box fingers are precision-ground steel with hardened edges for long, dependable service.

Specifications:

• Maximum working width: 42"
• Maximum full width sheet metal thickness: 16 Ga. mild steel
• Maximum clamping beam lift: 4-3/4"
• Maximum height of pan/box sides: 1-1/2"
• Maximum bending angle: 0-140°
• Box bending fingers: 1", 1-3/16", 1-3/8", 1-9/16", 1-3/4", 2", 2-15/16", 3-15/16", 5-15/16", 9-7/8"
• Overall dimensions: 52" W x 42-1/2" H x 30-3/4" D
• Approximate shipping weight: 525 lbs.
