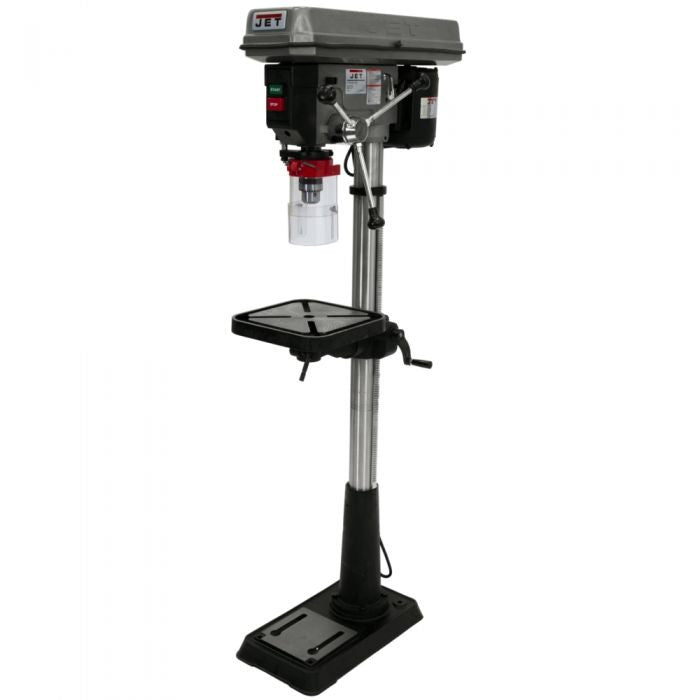

Jet 354400 J-2500, 15" Floor Model Drill Press 115V 1Ph

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

Features:

• For added safety, the motor and electrics follow strict guidelines and electrical requirements to be certified by CSA Group
• The enclosed spidle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
• Cast Iron head
• Large ground steel column for maximum head and table support
• Large quill allows greater accuracy
• 3-1/8" stroke for deep hole applications
• Accurate depth stop for precice hole depths
• Table tilts 45°
• 5/8" drill chuck and arbor
• Telescoping safety spindle guard

Specifications:

• Style (Type) Belt Drive
• Drills to Center of Circle (in) 15
• Drilling Capacity Cast Iron (In.) 5/8
• Drilling Capacity Mild Steel (In.) 1/2
• Distance Column to Spindle (In.) 7-1/2
• Number of Spindle Speeds 16
• Range of Spindle Speeds (RPM) 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630
• Column Diameter (In.) 2-7/8
• Spindle Taper (In. x TPI) MT-2
• Spindle Travel (In.) 3-3/8
• Spindle Distance to Base (In.) 48
• Spindle Distance to Table (Max.) (In.) 24
• Table Size (L x W) (In.) 11-1/2 x 11-1/2
• Table Travel (In.) 24
• T-Slots Number and Size (In.) -
• T-Slot Centers (In.) -
• Work Table Weight Capacity (Lbs.) 44
• Base Dimensions (In.) 11 x 19-1/2
• Base Work Table (In.) 7 x 7-1/2
• Base Slots Number & Size (In.) -
• Motor (HP) 3/4 HP, 115V, 1Ph
• Prewired (V.) 115
• Overall Dimensions (L x W x H) (In.) 31 x 13 x 63
• Weight (Lbs.) 167
