Recommended for: Pressing bearings and bushings or broaching keyways in any fabrication or machine shop.

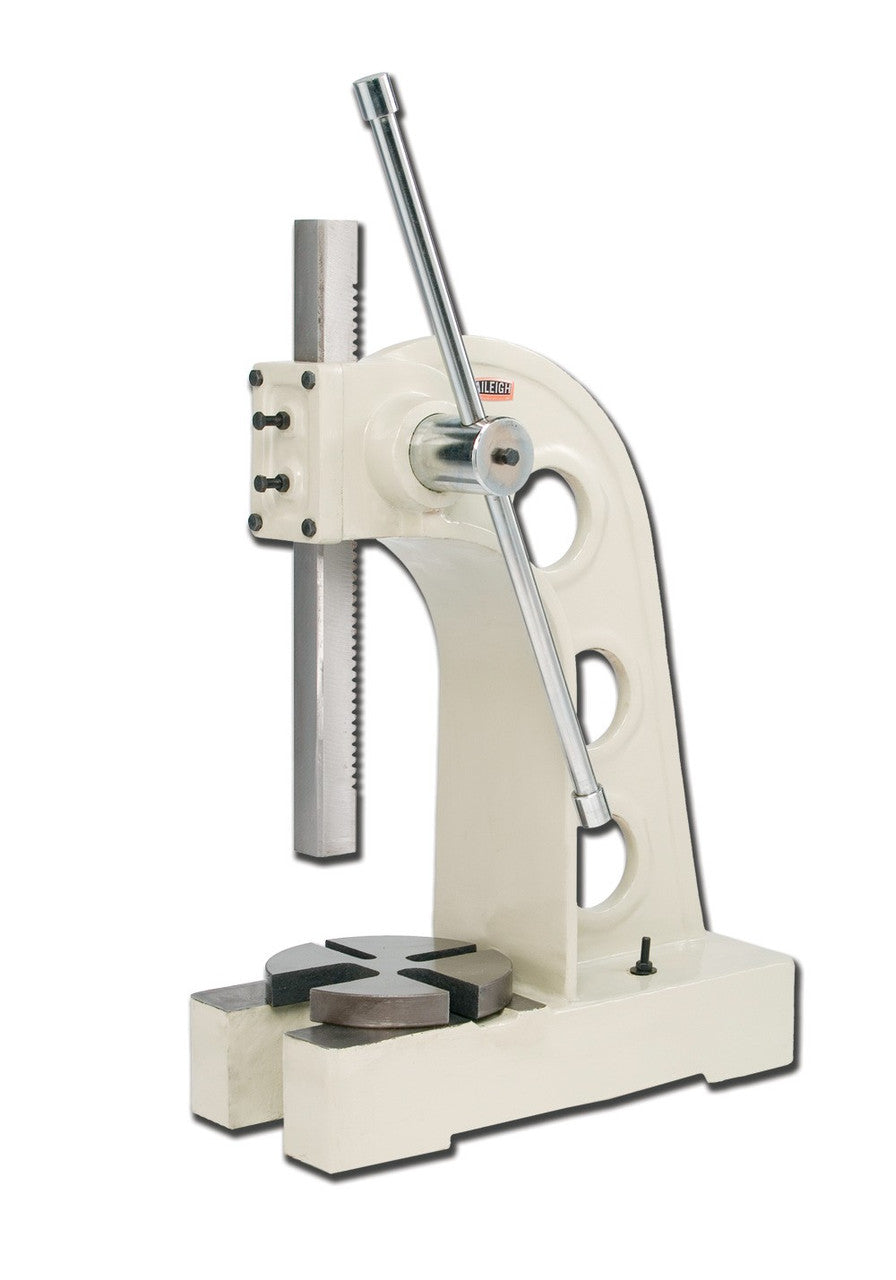

Baileigh Arbor Press Ap-5
$1,648.00
Sale price
$1,648.00
Regular price
We engineered the AP-5 manual arbor press to produce up to 5.6 tons of force and last for decades. A machined cast iron housing framework gives this manual sheet metal-forming press its “muscle” and increases its durability.
- Has a throat depth of 8.89” and accepts material up to 17.5” high.
- Thick 2” x 2” case-hardened ram transfers pressure without flex for maximum accuracy.
- Adjustable ram cap allows for gap adjustment of ram.
- 31” adjustable, single-leverage handle multiplies your force to produce strain-free pressure.
- Sturdy 2.375" pivot shaft supports smooth, powerful ram movement.
- Includes a durable 4-position bottom die plate to secure various broach sizes.
- You can remove the bottom plate to press items directly on the AP-5’s framework.
- Can be pedestal- or bench-mounted.
- Typically kept in stock for immediate shipment.
- The AP-5 Baileigh arbor press is covered by a 1-year warranty and lifetime technical support.
Recommended for: Pressing bearings and bushings or broaching keyways in any fabrication or machine shop.
SPECIFICATIONS
| Item Number | AP-5 |
|---|---|
| Ram Size | 2" x 2" |
| Throat Depth | 8.89" |
| Maximum Material Height | 15.75" |
| Capacity | 5.6 tons |
| Maximum Arbor Height | 2.75" |
| Power | Manual |
| Shipping Weight | 400lbs |
| Ram Travel Per Revolution | 8.5" |
| Shipping Dimensions (Inches) | 48x45x43 |
