Baileigh Industrial

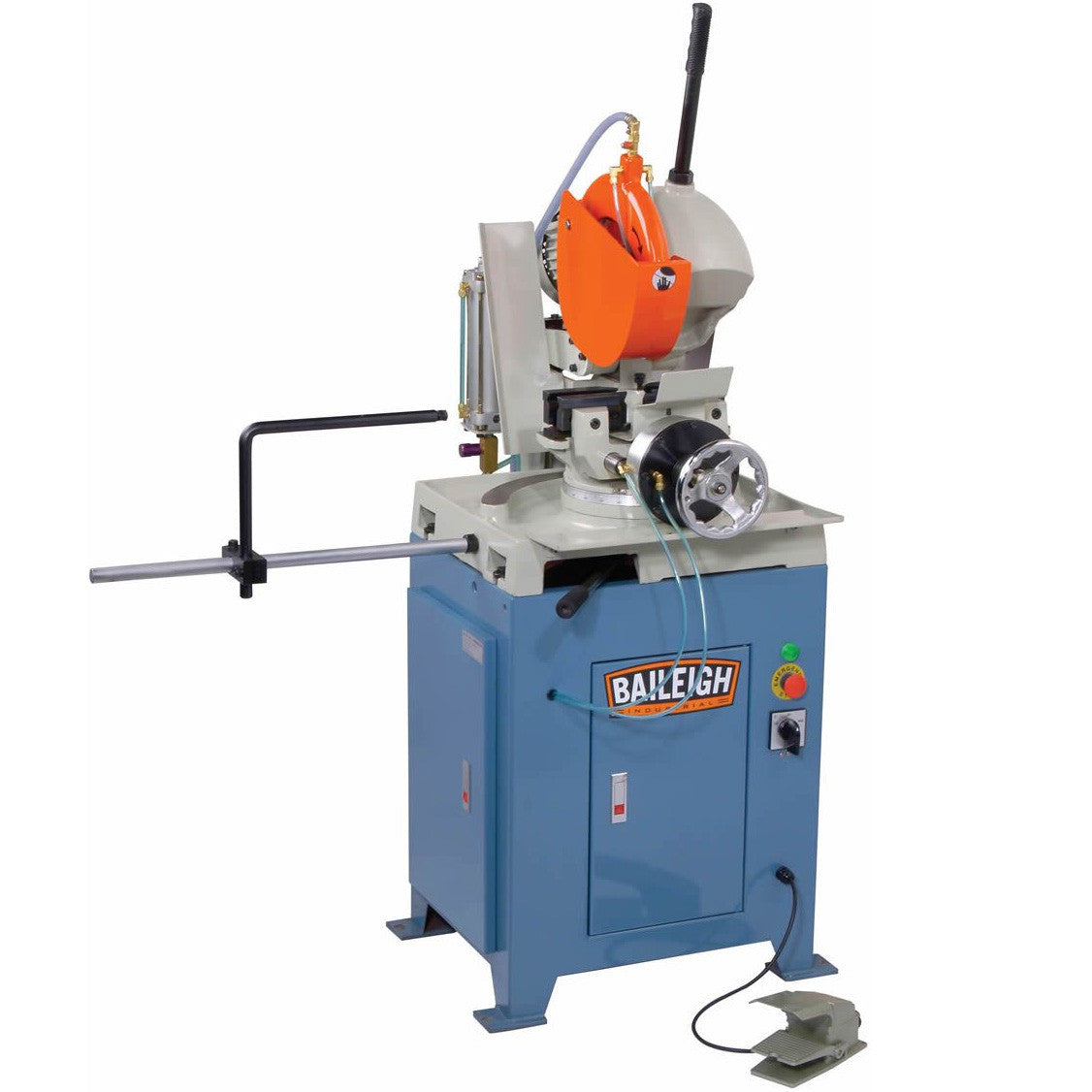

Baileigh Cold Saw - (CS-275SA)

Baileigh Cold Saw - (CS-275SA)

$10,042.00 USD
$10,042.00 USD
Sale Sold out
Shipping calculated at checkout.

This semi-automatic, three-phase Cold Saw will save time while making large amounts of pristine cuts. Built to last, this Baileigh Cold Saw offers a cast iron head and base, a pneumatic vise, and a flood coolant system that lubricates the blade for clean cutting and mirror-smooth edges. Designed with a sturdy folded steel stand that stabilizes this Circular Saw and adds to its structural strength. The rigid cast iron base reduces vibrations for accurate cutting and makes both the blades and the saw itself last longer.

Easy to use: just put your material in the vise and push the foot pedal to clamp it. The blade will automatically start, lower, and cut.

This Cold Saw comes covered by a 1-year parts warranty. Lifetime technical support by phone means you can call our team of metalworking experts any time you need help.

Accepts an 11” blade with a maximum capacity of 2.75” round tube at 90° and miters 45° right and 90° left, perfect for slotting applications
Cuts thin-, medium-, or thick-walled pipe, as well as tubing, extrusions, and solid bar stock with a stop rod that conveniently allows you to cut repeatable lengths
3 hp motor requires 220-volt 3-phase power to run the direct-drive blade - You can switch between 2 operating speeds, 60 and 120 rpm, depending on your application
Design adds semi-automatic technology to our CS-275M cold saw, one of the best manual production saws available with an integrated coolant system that saves you money by extending the lifespan of cold saw blades
Heavy-duty cast iron head minimizes vibrations to give you high-quality cuts with smooth edges and head features all-metal gears that are ground and hardened for long life
Backlash adjustment lets you reduce play in the gears to maintain tight tolerances throughout many years of use
American-style self-centering vise keeps the material in the right position to the blade for perfect cuts
Pneumatic or air-powered vise spares you the trouble of locking the material in by hand
You can operate this circular cold saw in manual mode (pull down the blade head by hand) or semi-automatic mode
Blade will shut off and the head automatically rises back to the top once the cut is complete, eliminating the effort of manually returning it


Stock Number BA9-1002447
Model Number CS-275SA
Motor (HP) 3.0 / 1.5 hp
Prop 65 Cancer and Reproductive Harm
Solid Round at 45 Degrees (In.) 1.5"
Solid Round at 90 Degrees (In.) 1.5"
Style (Type) Dual Action, Self Centering
Tubing Rectangle at 45 Degrees (In.) 2.165" x 2.25"
Tubing Rectangle at 90 Degrees (In.) 2.75" x 2.9"
Tubing Round at 45 Degrees (In.) 2.25"
Tubing Square at 45 Degrees (In.) 2.165" x 2.165"
Tubing Square at 90 Degrees (In.) 2.75"
Weight (Lbs.) 715
