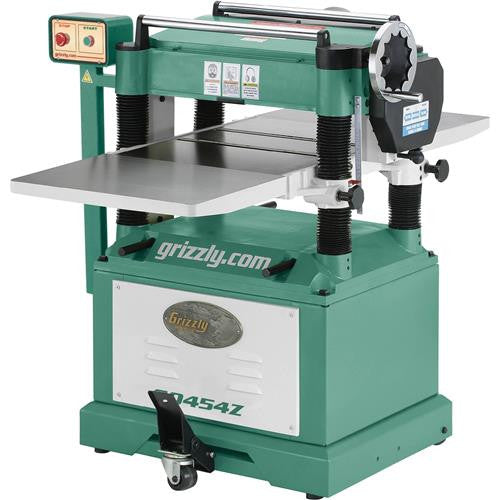

Grizzly G0454Z - 20" 5 HP Planer w/ Spiral Cutterhead

Put this 20" Planer in your shop without breaking the bank. Solid cast iron and steel construction and large planing capacity make this planer a true heavyweight. However, with a foot-operated caster system, you won't need to manhandle this planer around your shop. You'll also appreciate the 55-1/2" long precision-ground table, 5 HP motor and the two-speed gear box for maximum versatility. The G0454Z has a spiral cutterhead with 4-sided German-made carbide inserts for ultra smooth surfaces.

CSA certified meeting CSA & UL standards!

Note on replacement inserts:

• For models manufactured April, 2015 and later, use H7319 replacement inserts.
• For models manufactured March, 2015 and earlier, use T21348 replacement inserts.

SPECIFICATIONS:

• Motor: 5 HP, 240V, single-phase, 19A
• Maximum stock width: 20"
• Maximum stock thickness: 8"
• Minimum stock thickness: 3/16"
• Minimum stock length: 8"
• Maximum cutting depth: 1/8"
• Cutterhead type: 4-row spiral, 98 inserts
• Insert size & type: 14mm x 14mm x 2mm, indexable carbide
• Cutterhead speed: 4800 RPM
• Feed rate: 16 FPM & 20 FPM
• Table size with extensions: 20" x 55-1/2"
• Dust port size: 5"
• Overall dimensions: 55-1/2" L x 39-1/2" W x 45-7/8" H
• Approximate shipping weight: 932 lbs.

FEATURES:

• Built-in mobile base
• Precision-ground cast-iron table and extension wings
• Board return rollers
• Rubber-coated outfeed roller
• Adjustable bed rollers
• Magnetic switch with thermal overload protection
• Four-column support with table locks
• Two-speed feed rate
• Certified to CSA & UL standards
