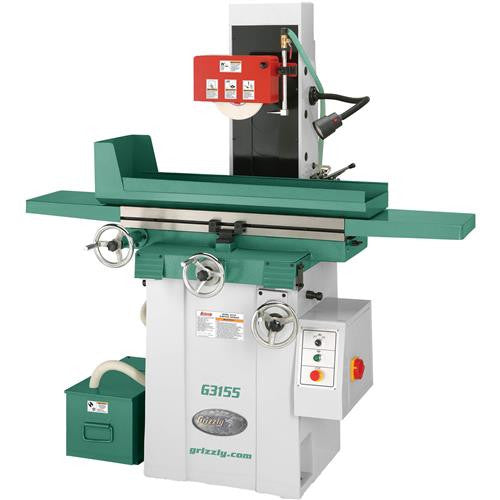

Grizzly G3155 - 8" x 20" Surface Grinder

This is the big brother to the G3104 surface grinder for those who need more capacity. Heavy castings, smooth operation, and dependable precision are built into this well-made unit. Check out the specs below and you will see this is an incredible value for a machine of this quality.

Features:

• Flood coolant system
• Column dial
• Cross feed dial
• Cast iron cabinet
• One-shot lubrication
• Power indicator lights
• Work light
• 7-7/8" x 15-3/4" magnetic chuck
• Grinding wheel balancing kit
• Dressing diamond with mount
• Cast iron construction
• Includes 24-grit grinding wheel

Specifications:

• Motor: 2 HP, 220V, 3-phase, 6.8A
• Table surface: 8" x 19-3/4"
• Longitudinal travel: 23-1/8"
• Cross travel: 9-1/8"
• Maximum distance table to wheel: 13-7/8"
• T-slot and size: 1/2" stud, 7/8" head
• Grinding wheel: 1-1/4" B x 3/4" W x 8" D
• Maximum grinding area: 10" x 21-1/2"
• Overall dimensions: 66" W x 43" D x 64" H
• Column size: 9-1/4" x 12-3/4"
• Spindle diameter: 1-1/4"
• Spindle speed: 3450 RPM
• Approximate shipping weight: 1898 lbs.
