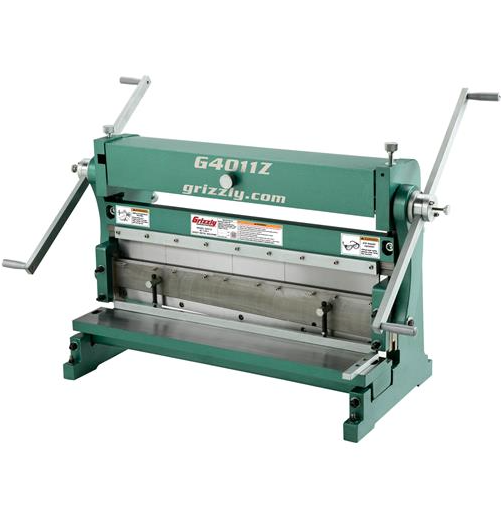

Grizzly G4011Z - 30" 3-in-1 Sheet Metal Machine

Our Z-Series models are specially built with heavier components and machined to closer tolerances to satisfy the increased precision and durability needs of the most demanding users. If you’re fabricating sheet metal up to 30" wide, this is the Sheet Metal Machine of choice! Beefy cast iron construction means you’ll be shearing, bending and rolling sheet metal for many years to come. Check out the specifications and you’ll agree, this is the machine for you!

Specifications:

• Maximum capacity mild steel: 22-gauge at full width
• Maximum width: 30"
• Minimum reverse bend: 1/2"
• Maximum height pan/box brake sides: 2-3/8"
• Number of fingers: 7
• Width of fingers: 1", 2", 3", 4" (2), 6", and 10"
• Slip roll minimum diameter: 1-5/8"
• Footprint: 33" L x 17-1/2" W
• Overall size: 42" W x 18" D x 27" H
• Approximate shipping weight: 475 lbs.
