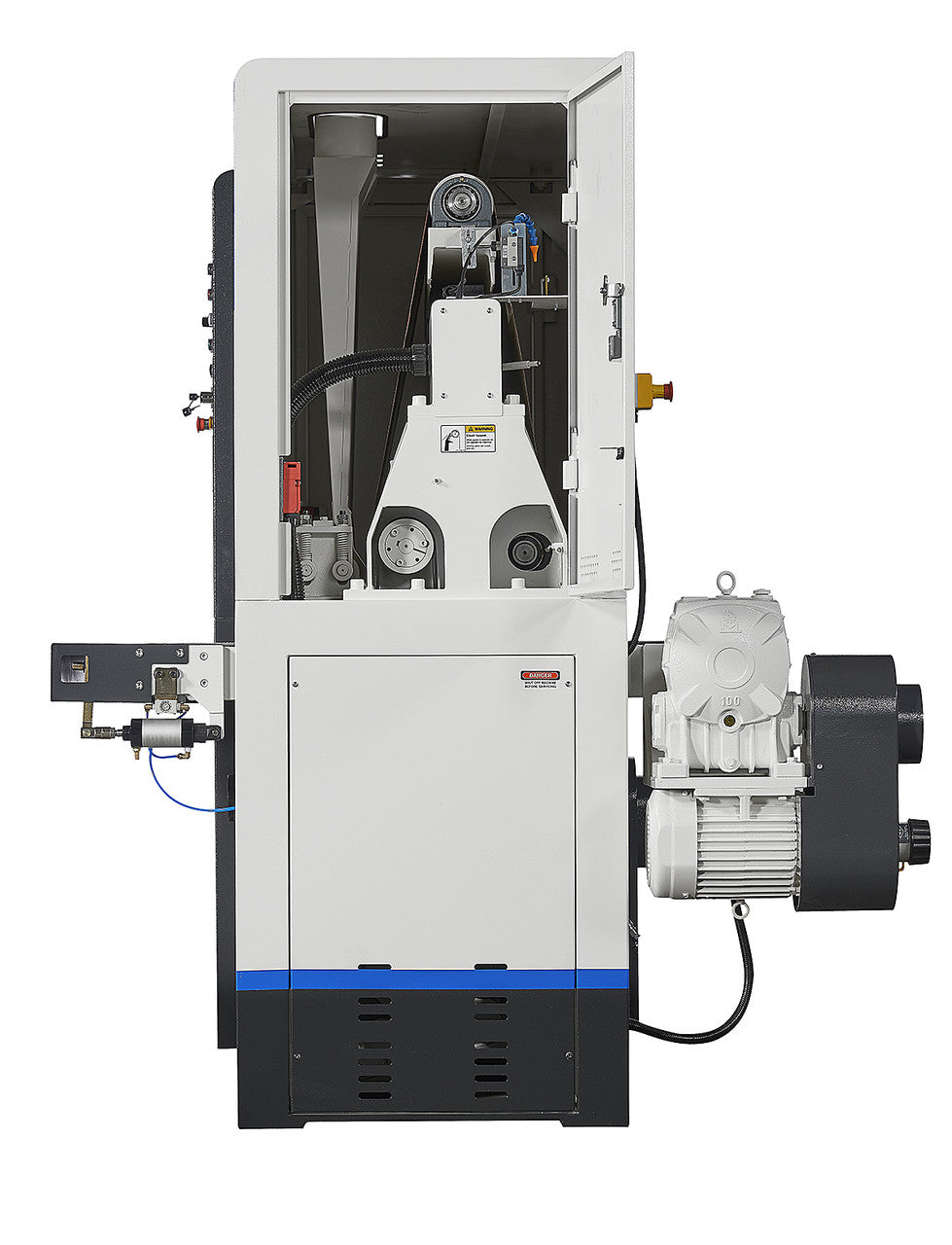

Stiles Machinery Ironwood 230V Single Head 50” Wide Belt Sander S115K

Ironwood’s engineering team designed the S115K single head wide belt sander to be a robust blend of innovation, dependability, and quality. Designed for a serious woodworker who demands absolute precision in sanding, this machine will save labor and will offer versatility to perform a variety of sanding tasks. The S115K includes a combination head with a steel contact roller and adjustable platen.  The head is driven by a poly-v-belt drive for smooth and vibration-free sanding results.  Machine includes a programmable digital controller, enabling quick set-up times and maximum stability, precision, and sanding quality.

Simple and Intuitive Controls

• Controller quickly adjusts machine thickness (+/- 0.1mm or 0.004”)
• Controller storage capacity of 99 programs for easy and fast adjustment
• Displays in mm or decimal inches (3 decimal places for inches)
• Simple push button controls for turning on and off each head
• Control switch with key for service or operation mode
• Amp meters for each sanding head
• Hour meter display
• Emergency stop

Sanding Head

• 50” single head wide belt sander
• 140 mm diameter steel contact roller
• Height adjustable sanding pad
• Twenty (20) horsepower IE3 motor
• Poly-v belt drive
• Cutting speed of 20 mps (65 fps)
• Cutting direction against feed

Additional Technical Features

• Poly-v belt drive for sanding head for smooth and vibration-free sanding head operation
• Rubberized hold down rollers before and after sanding head with double hold down rollers at infeed and outfeed for consistent hold down
• Variable speed conveyor 4-16 mpm (13 – 52 fpm)
• Conveyor table mounted on four heavy duty jack screws for smooth, stable and accurate height adjustment
• Adjustment hand wheel for quick and easy fine height adjustments
• Automatic conveyor belt tracking for worry-free conveyor belt operation
• Electronic abrasive belt tracking
• Abrasive belt tensioning located on front of machine with safety switches for belt breakage
• Large diameter tensioning roller (100 mm)
• Abrasive belt loading assist
• Abrasive belt run-off protection
• Pneumatic disc motor braking system
• Workpiece over thickness protection system
• Safety switches on all access doors and emergency stops at infeed and outfeed locations
• Robust steel machine frame
• UL/CSA machine electrical components

Specifications

• Working width max.: 1270 mm (50”)
• Conveyor belt width: 1300 mm (51”)
• Abrasive belt width: 1320 mm (52”)
• Abrasive belt length: 1900 mm (75”)
• Workpiece thickness min.: 3 mm (1/8”)
• Workpiece thickness max.: 125mm (4.9”)
• Workpiece length min.: 400 mm (15.75”)*
• Variable conveyor speed: 4 – 16 MPM (13 - 52 FPM)
• Feed motor: 3 HP
• Table rise/fall motor: ½ HP
• Head #1: Combination head – 140mm Ø Steel contact roller with felt pad: 25 HP 65 fps belt speed
• Head #1: Rotation Direction: Against feed
• Electrical connection*: 230V | 3-Phase | 60 Hz.
• Dust collection requirements: 800 CFM
• Dust extraction: 2 ports | 123 mm (5”)
• Compressed air requirements: 90 PSI
• Air consumption per cycle: 4 CFM
• Machine net weight: 1,750 kg (3,858 lbs)
• Machine gross weight: 1,820 kg (4,012 lbs)
• Shipping dimensions (LxWxH): 84” x 68” x 86”
