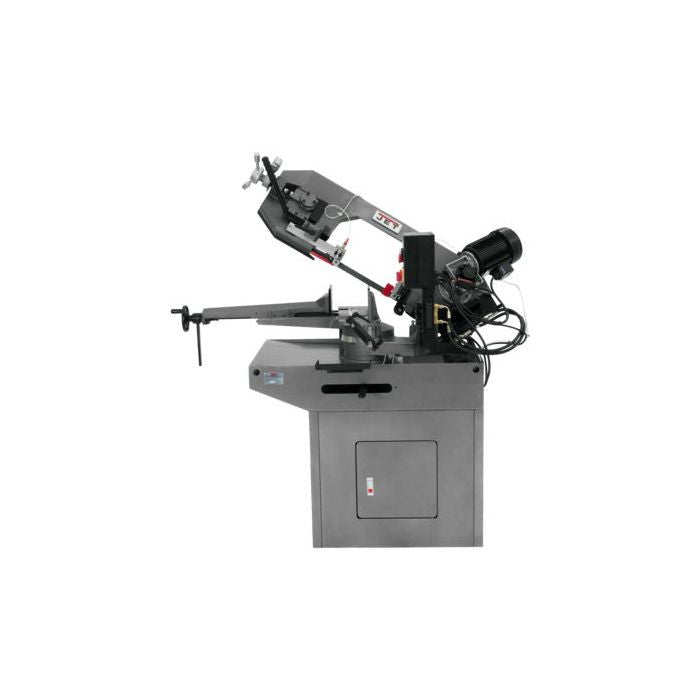

Jet 414467 J-9225 8-3/4 Inch Zip Miter Horiz-Band Saw 3Ph

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.

Features:

• Adjustable hydraulic feed system
• Eccentric shaft, ball bearings
• Heavy duty cast iron saw head and sturdy base
• Mitering capability to 60°
• Convenient control panel
• Complete coolant system
• Hydraulic blade tension gauge
• Adjustable material stop
• Bi-Metal bendsaw blade
• Overload protection
• Quick Release Vise

Specifications:

• Cutting Capacity (W x D) (In.) 8-3/4
• Round at 90 Degrees (In.) 8-3/4
• Round at 45 Degrees (In.) 6-1/4
• Rectangle at 90 Degrees (In.) 8-3/4 x 7
• Rectangle at 45 Degrees (In.) 6-1/4 x 7-1/4
• Vise Swivels (Deg.) 45°
• Head Movement (Deg.) 60°
• Blade Size (In.) 1 x .035 x 96-1/2
• Blade Length (In.) 96-1/2
• Blade Wheel Diameter (In.) 11-5/8
• Blade Speed (SFPM) 157, 314
• Bed Height (In.) 38-7/16
• Motor (HP) 1-1/2 HP, 230V, 3Ph
• Drive Geared Head
• Overall Dimensions (L x W x H) (In.) 51 33 x 59-1/4
• Weight (Lbs.) 485
