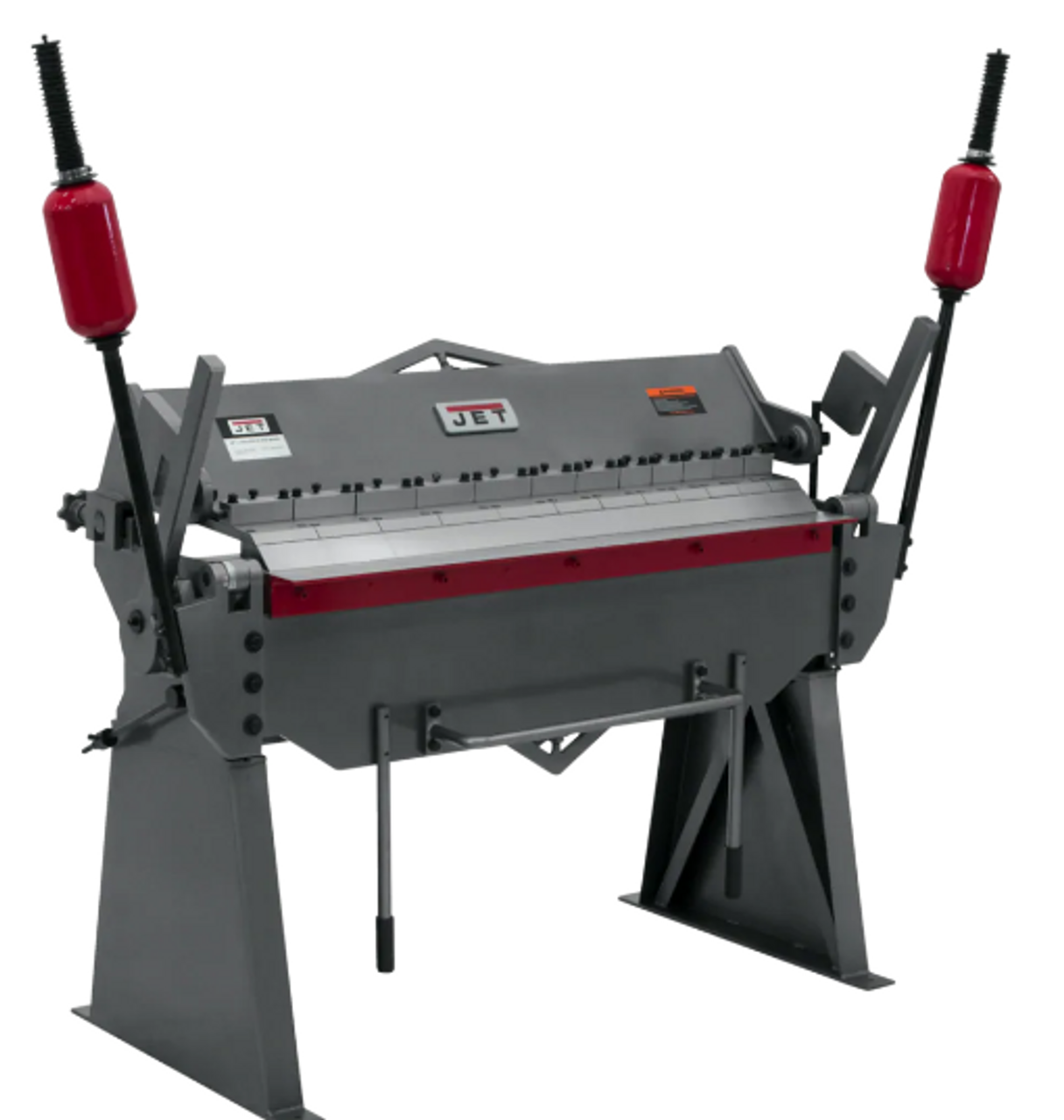

JET BPB-1248, 48" x 12 Gauge Floor Model Box and Pan Brake

Box and Pan Brakes from JET are perfect for the larger, high volume shop that requires versatility yet demands rugged durability and bending precision

Features:

• Wide assortment of finger widths allow greater versatility in the shop
• With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
• All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
• Both the bed and apron are bored in line to assure the utmost accuracy
• Counter weights can be moved up or down to adjust desired leverage
• Stop rod for repeatable bending
• 12 gauge maximum capacity for mild-steel
• 10 gauge maximum capacity for aluminum and copper alloys
• 16 gauge maximum capacity for stainless steel

Specifications:

• Style (Type) Floor Box and Pan
• Mild Steel Capacity (Gauge) 12
• Bending Length Capacity (In.) 48
• Maximum Box Depth (In.) 4
• Maximum Lift of Beam (In.) 1-1/2
• Beam Adjustment (Front to Rear) (In.) 7/8
• Number and Width of Fingers (In.) 12 (5@3in, 2@4in, 5@5in)
• Finger Nose Angle (Deg.) 45
• Nose Radius (In.) 1/32
• Overall Dimensions (L x W x H) (In.) 87 x 59 x 70
• Weight (Lbs.) 1,110
