Jet Tools

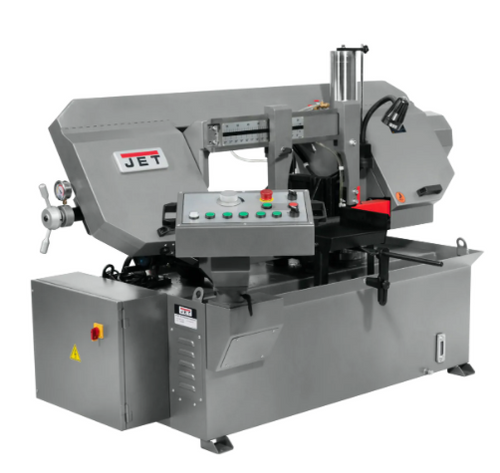

JET HBS1220DC, 12X20" Semi-Automatic Dual Column Bandsaw 3HP, 230/460V, 3PH
JET HBS1220DC, 12X20" Semi-Automatic Dual Column Bandsaw 3HP, 230/460V, 3PH
Regular price
$17,489.00 USD
Regular price
Sale price
$17,489.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
JET Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut.
Features:
- Heavy duty construction reduces vibration and deflection
- Coolant is distributed through the blade guides through an integrated coolant system
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Built-in, self-propelled blade brush prevents chip build up in blade guides
- Motor designed for continuous operation
- Powerful gearbox for long life
- Two column design for more productive cutting
Specifications:
- Blade Length (In.) 155-1/2
- Blade Speed (SFPM) 95 - 295
- Rectangle at 90 Degrees (In.) 12 x 20
- Weight (Lbs.) 1420
- Blade Wheel Diameter (In.) 16
- Blade Width (In.) 0.043
- Electrics 3HP, 230/460V, 3Ph
- Bed Height (In.) 27
- Motor Power (HP) 3
- Square at 90 Degrees (In.) 12
- Motor (HP) 3 HP, 230/460V, 1Ph
- Shipping Weight (Lbs.) 1628
- Coolant Pump Motor 1/8HP, 230/4660V, 3Ph
- Motor Phase 3
- Motor Voltage (V.) 230/460
- Overall Dimensions (L x W x H) (In.) 81 x 42-1/2 x 54-1/2
- Prewired Voltage (V.) 230
- Drive Mechanical Variable Speed
- Net Weight (Lbs.) 1420
- Gross Weight (Lbs) 1628
