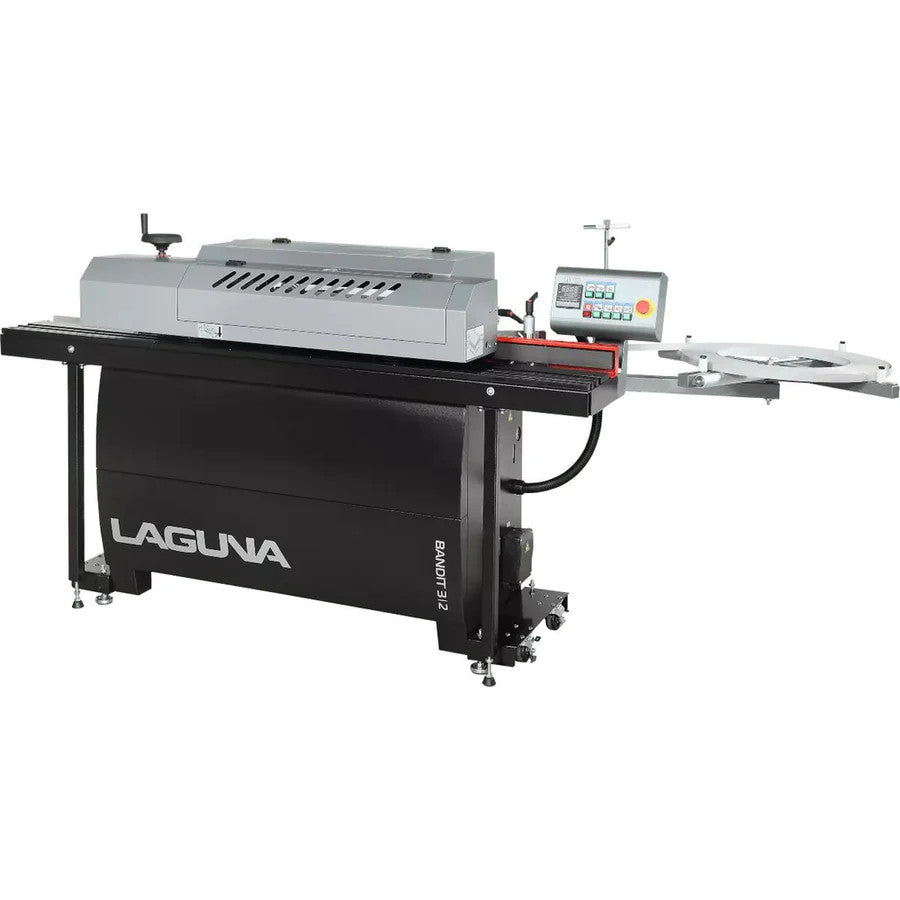

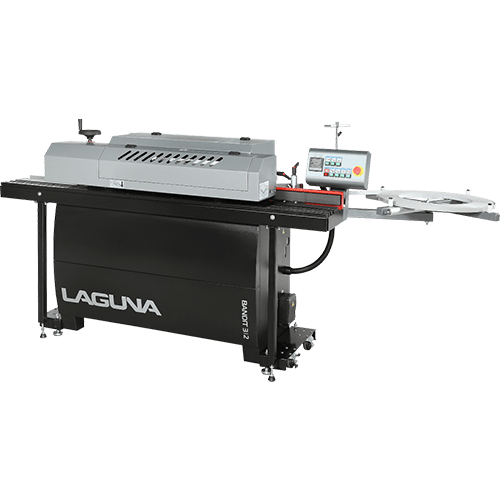

Laguna Tools Bandit 3/2 Edgebander
Laguna Tools Bandit 3/2 Edgebander
The Laguna Tools Bandit 3/2 is the compact heavy-weight in our line of automatic edgebanders. Designed for every-day professional use with all 2mm materials. The gluepot allows for maximum flexibility for use with PVC, wood tape, laminate and wood strips. Standard features include automatic end trim with dual blade end cutting units, edge trimming with dual high frequency motors, buffing unit, adjustable overhead control panel, pull out support rollers for wide panels, and electronic temperature control with digital readout.
- Power: 220 Volt, 1 phase 40 Amp
- Compressed Air Required: 87 PSI Clean dry air
- Tape Thickness (min-max): 0.4 mm – 2 mm
- In-feed Fence: Heated
- Glue Tank Capacity: 30 oz Teflon Coated
- *Wheel System Not Included
Specifications:
Glue Heating: 5 Elements with Auto Temperature Control
Glue Applications: Micro-Adjustable
Pressure Rollers: Dual
Panel Feed: Automatic Belt Feed
Work Table Length: 79″
Minimum Panel Length: 9.44″
Minimum Panel Width: 4-¾″
Panel Thickness (Min – Max): .47″ – 1.77″
Dust Collection Port: 4″

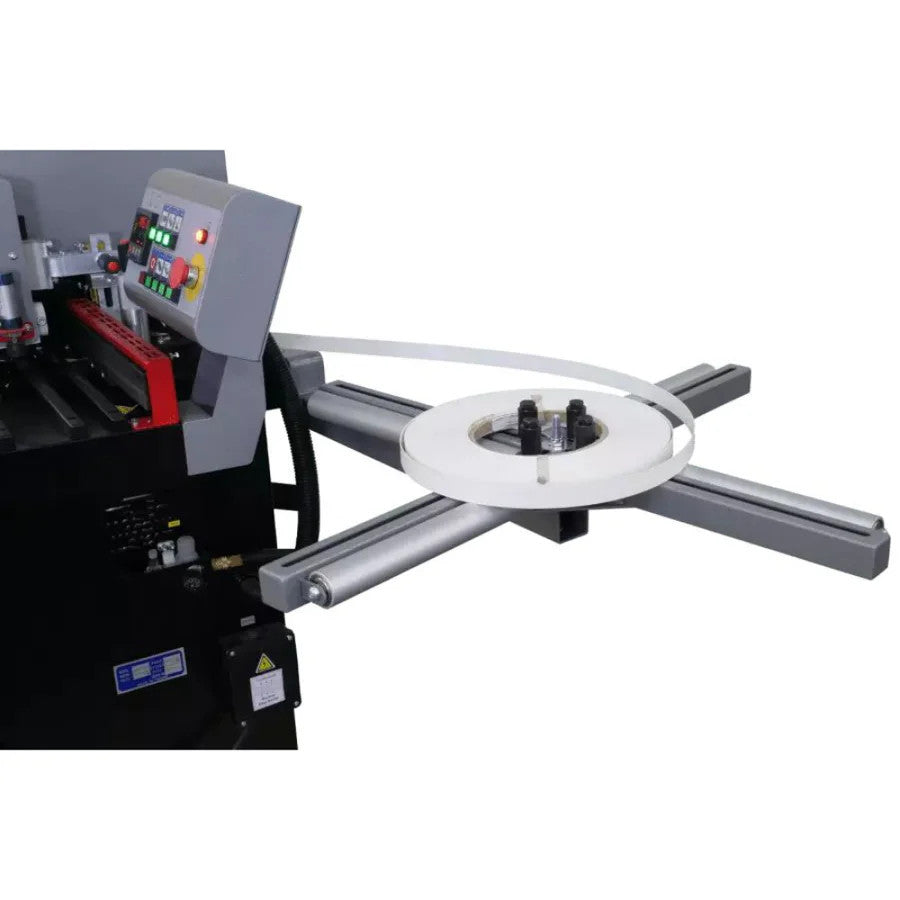

Edgebanding Coil Capacity: 31-½″ Diameter
End Trim: Saw Blade – Front and Rear Automatic
Edge Trim: Carbide Insert Shaper Cutters – Top and Bottom
Buffing: Top and Bottom
Power Requirements: 40amp Breaker
Weight: 1200 lbs
Shipping Size (L x W x H): 84″ x 29″ x 52″
Pull-Out Support: Standard

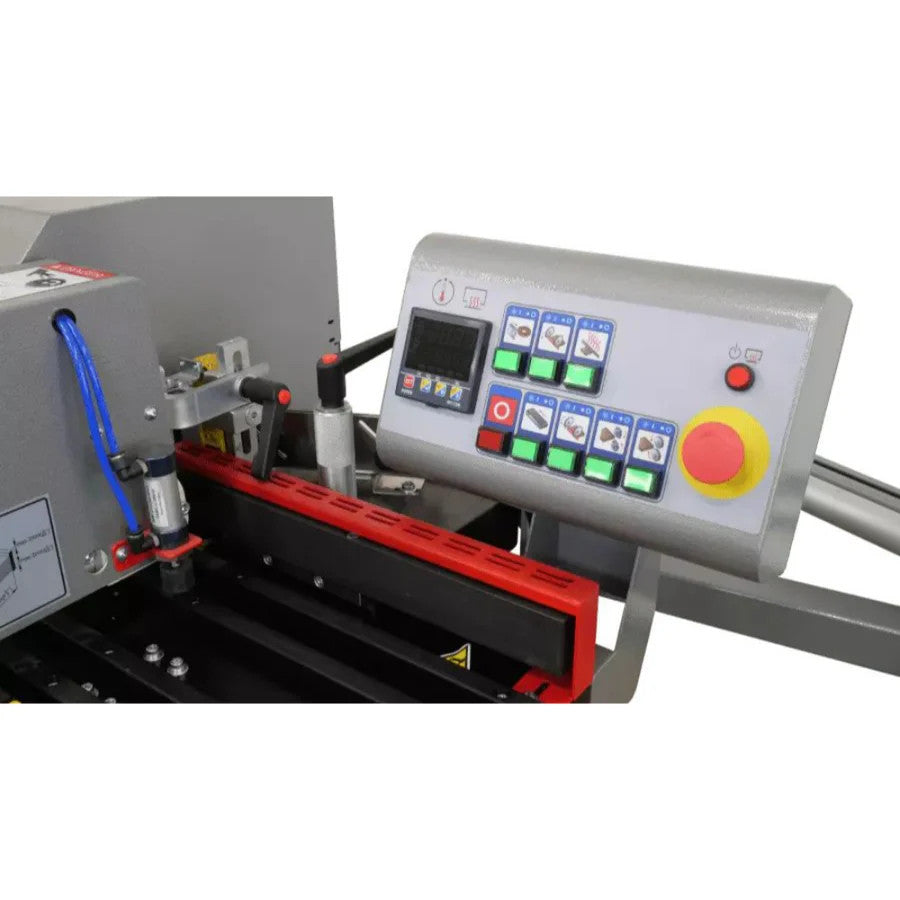

Centralized Controls: PLC Standard
Mobility Kit: Optional
