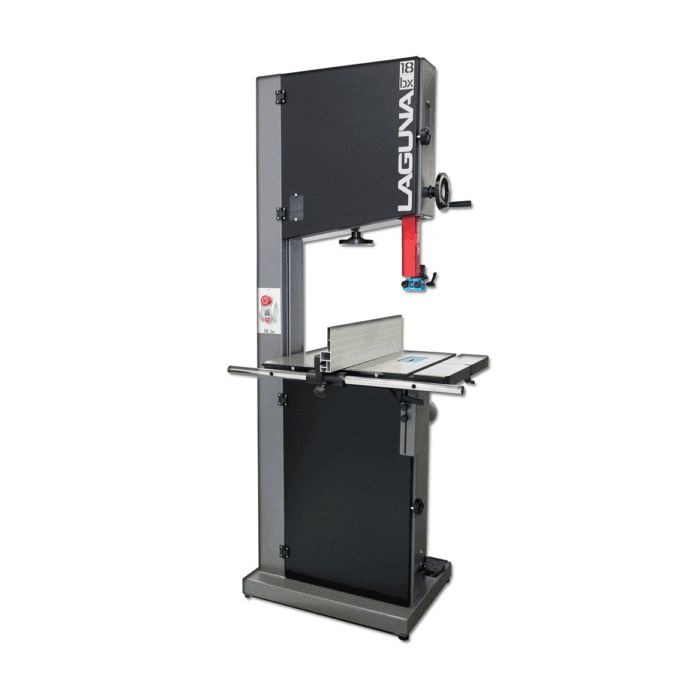

Laguna Tools Bandsaw 18|Bx 3HP 220V

MBAND18BX2203, Laguna Tools 18|Bx 3HP 220V 18" Bandsaw

The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor and 145” (368 cm) blade for consistent results, cut-after-cut, regardless of material.

Key Advantages

• Superior Resaw Performance: With a 16-inch resaw capacity and a powerful 3HP motor, it easily handles large hardwoods and thick slabs that smaller saws cannot.
• Precision Ceramic Guides: Equipped with Laguna's signature 10-point ceramic guide system, which offers reduced friction, better heat dissipation, and longer blade life compared to traditional steel guides.
• Enhanced Stability: Features a pyramid-shaped spine and dynamically balanced cast iron wheels that significantly reduce vibration for cleaner, quieter, and more accurate cuts.
• Rapid Stopping Power: Includes a disc brake with a micro switch, allowing you to stop the blade quickly for improved safety and efficiency between cuts.
• User-Friendly Adjustments: Includes a quick-release blade tensioner, worm gear rack-and-pinion upper guide adjustment, and clear viewing windows to monitor tracking and tension while the machine is running.
• Dual-Position Fence: The high/low anodized aluminum fence can be flipped vertically for tall resawing or horizontally for standard ripp

Specifications:

• Part Number: MBAND18BX2203
• Motor: 3HP, 220V, 1 Ph. 12 Amp.
• Recommended Breaker: 20 Amp.
• Magnetic Starter: √
• Min-Max Blade Width: ⅛"-1 ¼"
• Resaw Capacity: 16"
• Throat: 18 "
• Blade Length: 145"
• Disc-Brake with Micro Switch: √
• 220V Outlet on Back for Light: √
• Window for Tension: √
• Window for Tracking: √
• Magnetic Blade Tension Guide: √
• Worm Gear & Pinion Upper Guide: √
• 10 Point Laguna Ceramic Guides: √
• Flat Poly-Groove Drive Belt: √
• Premium Anodized Insert with Micro Adjustment: √
• Dynamically Balanced Cast Iron Wheels: √
• Urethane Single Piece Snap-on Tire: √
• Cast Table Size: 20" x 26"
• Table Tilt: -6°, +45°
• Quick-Release Tension: √
• Hi/Low Anodized Aluminum Fence: 22 ó" x 5 ." x ó"
• Table Height: 38"
• Dust Ports: 2 x 4"
• Overall Height: 77 ¾"
• Dimensions, Base: 27" x 20"
• Dimensions Overall: 36" x 30"
• Dimensions Box: 82" x 34" x 24"
• Weight (Net/Ship): 410/460 Lbs.
