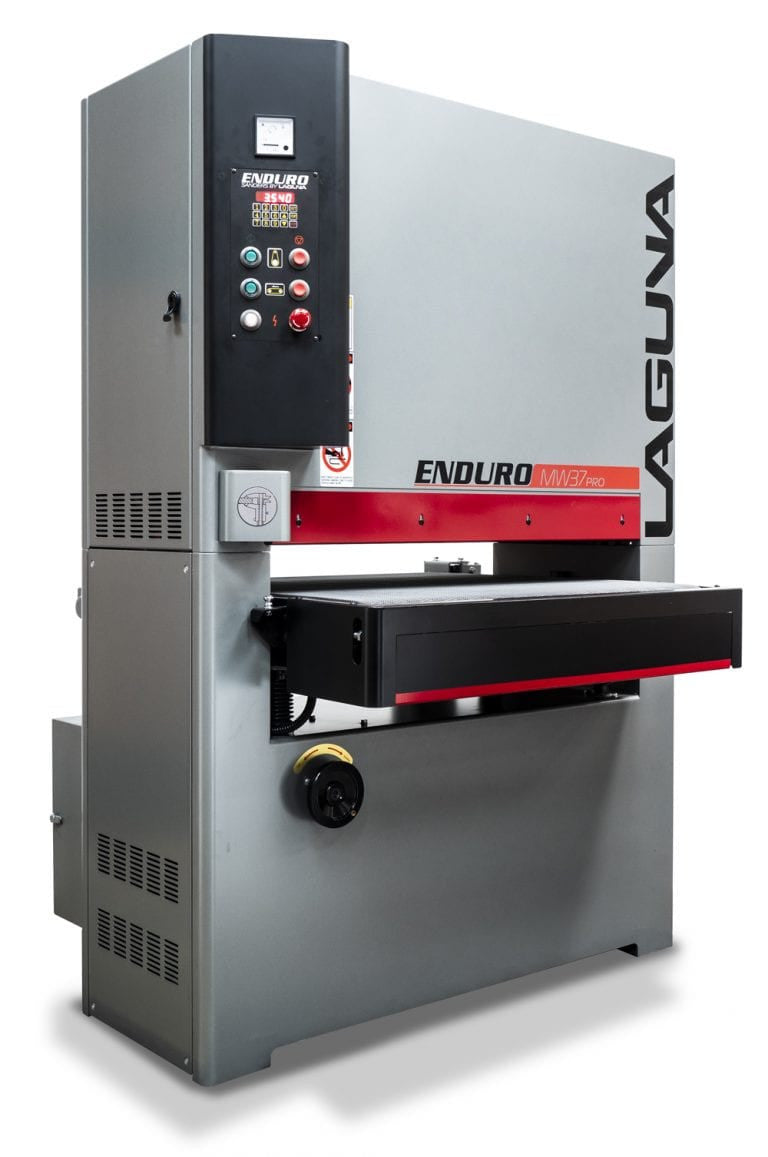

Laguna Tools Enduro Pro Series 37” Metal Wide Belt Sander MW37 PRO 3 Phase

The Enduro Series Offering metal deburring, sanding, and texturing, the Pro Line of Metal Wide Belt Sanders from LAGUNA gives a new level of production perfection. With a 20 hp motor, 37″ wide work table, an automatic thickness gauge system, or manual table elevation control, you can get the exact finish you need.

Features

• Single Sanding Belt
• 20hp Main Motor / 1hp Conveyor Motor
• Belt Size: 37″ x 75″
• Digital Control Panel with Logic
• Variable 12 – 60 feet/min Conveyor
• Speed Sanding Drum Diameter: 8”
• Dust Port Size: 5” x 3

Specifications

• Main Motor: 20HP
• Variable Feed Speed: 1HP
• Table Lifting Motor: 1/4HP
• Voltage: 220V, 3 Phase, 60hz: YES
• Programmable Logic Control: YES (Digital Readout)
• Automatic Thickness Control: YES (Thicknessor)
• Max Sanding Height: 6"
• Min Sanding Height: 1/8"
• Max Sanding Width: 36.5"
• Sanding Belt Size: 75"
• Diameter of Sanding Drum: 8"
• Length of Sanding Drum: 37.9"
• Sanding Drum RPM: 1720
• Conveyor Speed: 14-60ft/min
• Dust Port Size: 5"
• Number of Dust Ports: 3
• Foot Print: 19" x 51 1/2"
• Conveyor Height At Lowest Setting: 31.9" (Table Height 37.4")
• Cabinet Steel: YES
• Operating Air Pressure: 60PSI
• Sanding Belt Oscillation: YES
• Sanding Belt Motor Break: YES
• Fully CSA: YES
• Net Weight: 1675lbs
• Ship Weight: 2006lbs
