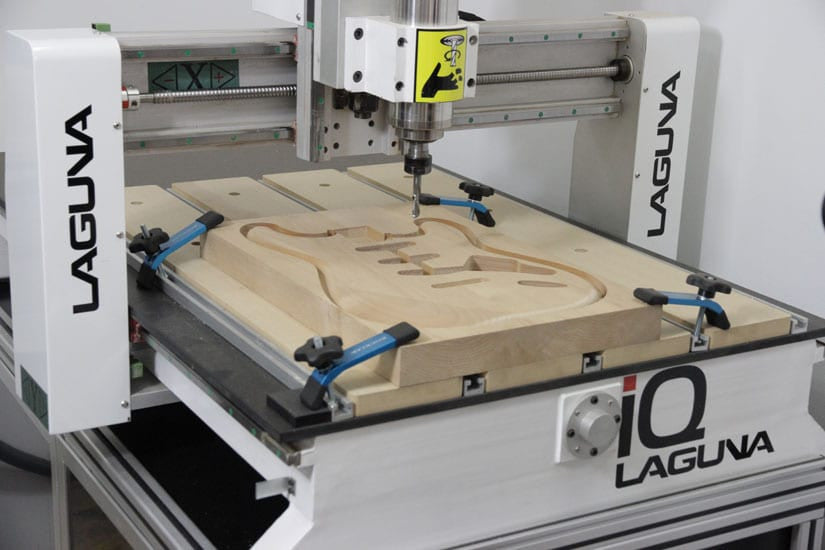

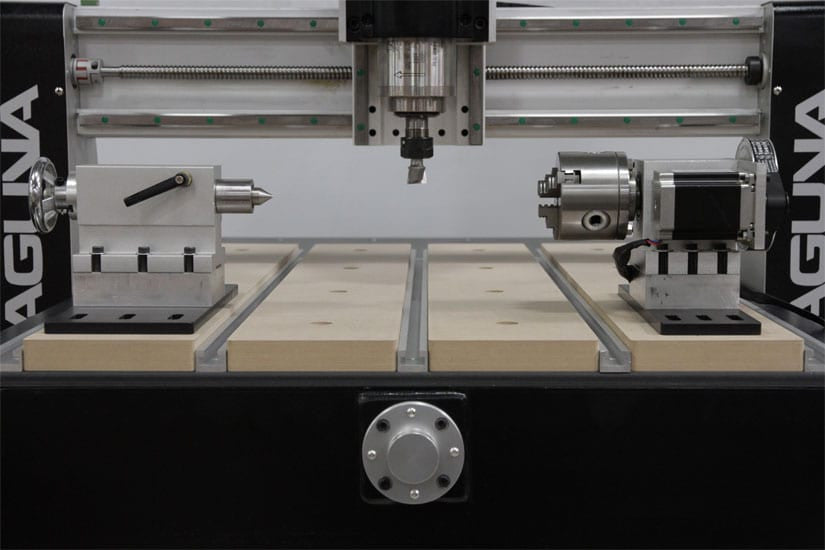

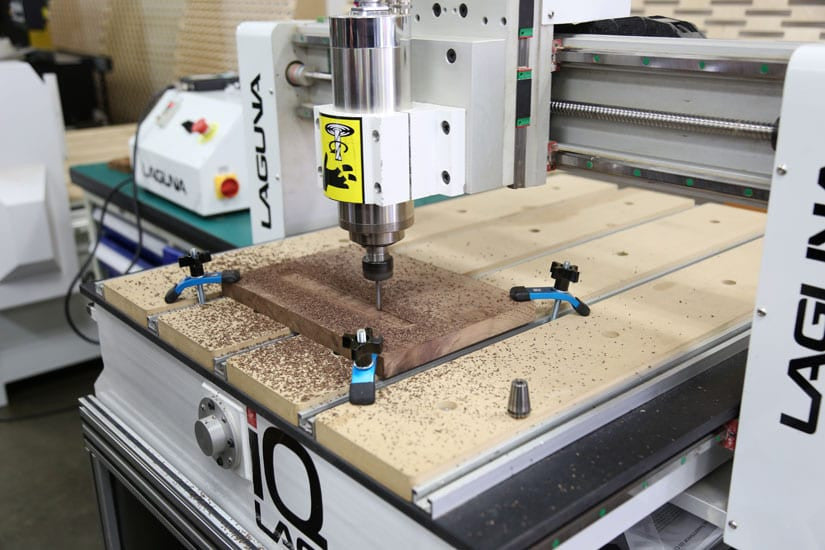

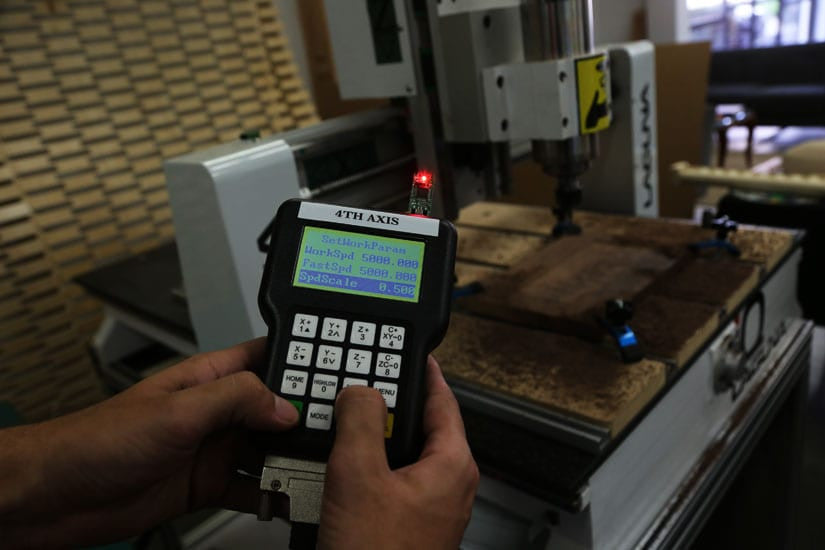

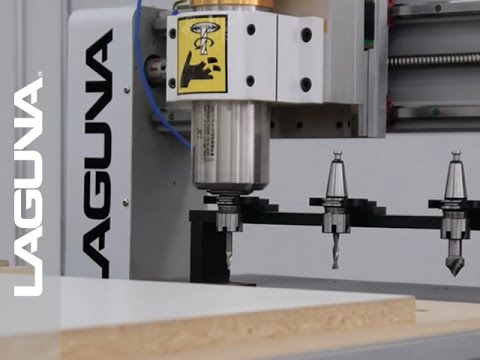

Laguna Tools IQ Pro 24” X 36” CNC Router - MCNC-IQPROATC The Laguna IQ PRO WITH ATC Laguna has enhanced the best selling IQ CNC with the introduction of a more powerful handheld control that allows for tool path previewing and a three position automatic tool changer. Automatic Tool Change, where machines can automatically change between three tools during one program. Handheld controllers with screens displaying the tool path and the G-code during design.
Motor: 3HP 220V / 30 Amp Single Phase Spindle: 3HP Industrial single phase Continuous Duty Liquid-Cooled 3 position automatic tool changer uses ISO-20 tool holders Spindle RPM: 6,000 – 24,000 RPM Controller: Richauto DSP Hand Held Ball Screw: On All Axis Gantry Clearance: 6 inches (Optional 12″ Gantry) Machine Work Table: 24 inches X 36 inches Machine Foot Print: 39½ inches X 57 inches Work Envelope: 24 inches X 36 inches Weight: 746 lbs.
