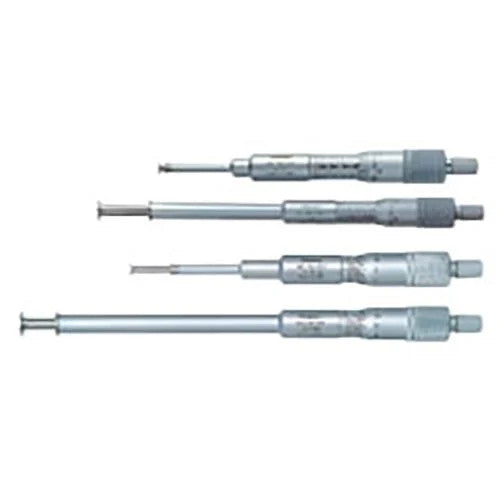

Mitutoyo Groove Micrometer, 0-1" - 146-232
- Flanged spindle for measuring width,depth, and location of grooves inside/outside bores, and tubes
- Provided with two types of graduations for inside and outside measurements
- Non-rotating spindle type has two directional ratchet stop.(Measuring force: 0.7 - 1.2N)
Technical Data:
- Accuracy: ±10µm / ± .0004”
- Parallelism: 10µm / .0004”
- Graduation: 0.001"
Specifications:
| Item Number | Inside Range | Outside Range | Flange | Mass | Type |
| 146-232 | 0.055 - 1.05" | 0 - 1" | Ø 0.5 in | 185g | Non-Rotating spindle |
