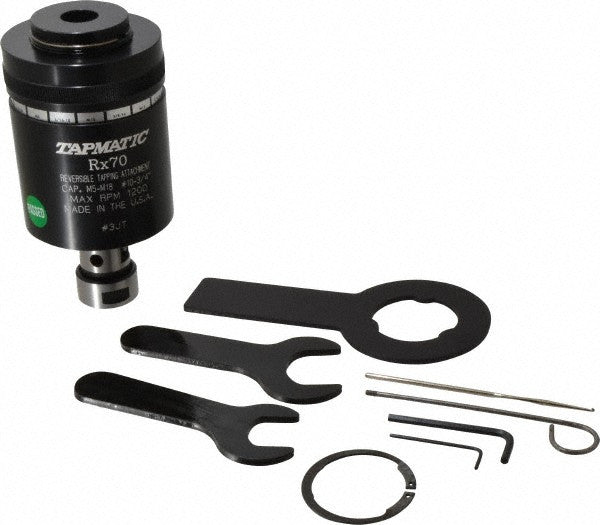

Tapmatic RX70 JT3 Mount Tapping Head 17003
Tapmatic RX70 JT3 Mount Tapping Head 17003
Regular price
$1,184.00 USD
Regular price
Sale price
$1,184.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Tapmatics newest attachment for high production with heavy duty ball clutch. Tapmatic RX self reversing tapping attachments meet the most difficult requirements.
Features:
- Provides for reduced tap breakage
- Produces perfect threads
- Reduced cycle times through increased reverse speeds
- Allows for longer tap life
Specs
| Shank Type | Taper Shank |
| Taper Size | JT3 |
| Minimum Tap Capacity (Inch) | #10 |
| Minimum Tap Capacity (mm) | M5 |
| Maximum Aluminum Tap Capacity (Inch) | 3/4-16 |
| Maximum Aluminum Tap Capacity (mm) | M18 |
| Maximum Mild Steel Tap Capacity (Inch) | 3/4-16 |
| Maximum Mild Steel Tap Capacity (mm) | M18 |
| Quick Change | No |
| Series | RX |
| Machine Type | Manual |
| Maximum RPM | 1200 |
| Body Diameter (mm) | 88.00 |
| Overall Length (mm) | 182.00 |
| Model Number | RX70 |
| Collet Compatibility | 24100 (J441); 24500 (J445) |
| Gear Ratio | 1.75:1 |
| Includes | Tap Clamping Wrenches |
